RH3N42 D100 3M 8 IN 1 Pneumatic Chuck

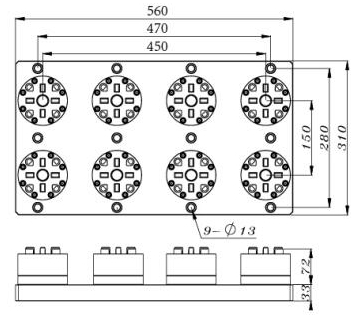

Specification: 560x310x105 mm;
Material: Japan Chromium Steel
Hardness: 57-60HRC;
Pressure: Air Pressure 6 bar/kg
Clamping: 10000N
Process Treatment: Vaccum Heat Trealment
Pro-Longed Coolling Surface nano-penetration
Treatment .

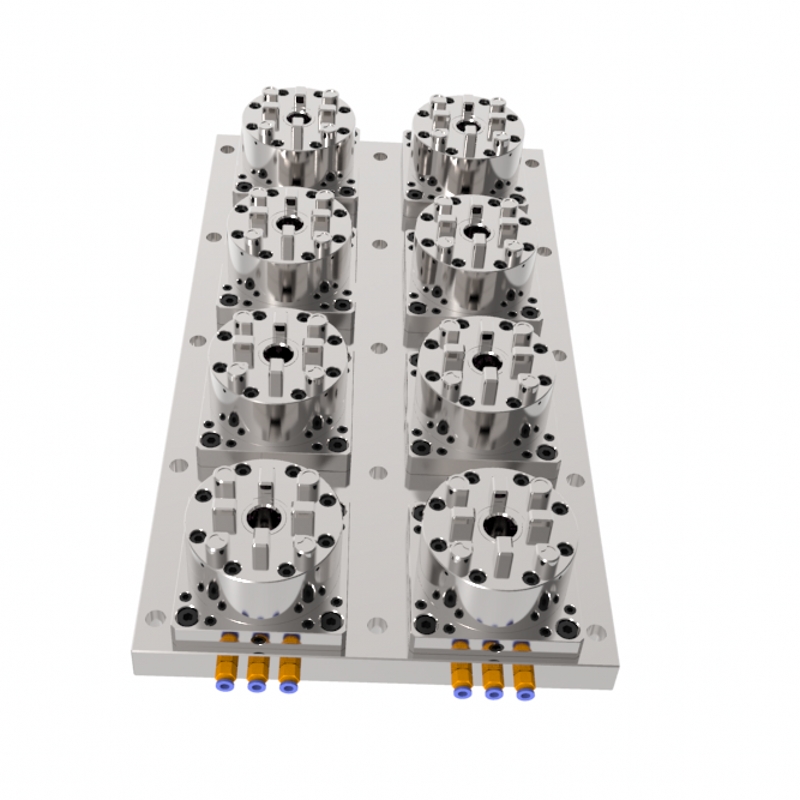

This is the D100 8-station, 3-pneumatic chuck, compatible with the EROWA/3R system.Its core advantages include "ultra-high density multi-station operation,one-button pneumatic locking, and micron-level positioning." It is anideal tooling for the mass automated processing of large precision parts andmold electrodes, and is widely compatible with CNC, EDM, and WEDM equipment.
1.Key Specifications
Model:RH3N42 D100 3M 8 IN 1 Pneumatic Chuck
Numberof Stations: 8 independent stations, 3-row layout, capable of clamping 8workpieces/electrodes simultaneously
Clamping Interface: Compatible with EROWA ITS 100 standard interface, adaptable to D100electrode tray
Drive Method: Pneumatic locking/unlocking, rapid automation response
Main Material: Japan Chromium Steel, quenched and tempered, hardnessHRC 57~60
Core Accuracy: Repeat positioning accuracy ≤0.002mm, inter-station position accuracy≤0.005mm
Installation Method: Long strip base plate with pre-drilled mounting holes, can be directly fixed to the machine tool table
Protection Rating: IP65 waterproof and chip-proof, suitable for harsh CNC/EDM environments
2.Core Structure Analysis
TopMulti-Station Clamping End: 8 independent ITS 100 interface stations, 3 Thecompact layout features four sets of positioning claws at each workstation forprecise docking with the pallet, ensuring zero clamping offset.
The central pneumatic mechanism incorporates a high-rigidity cylinder assembly,with multiple air source interfaces at the bottom enabling one-button locking/unlockingof different zones, making operation easy and eliminating the need for manualforce.
The base panel features a long, high-strength base plate with multiple sets ofuniversal mounting and positioning holes, allowing for flexible adaptation tolarge machine tool worktables.
The positioning structure includes built-in precision positioning pins that fitseamlessly with the EROWA ITS 100 pallet, ensuring accurate positioning.
