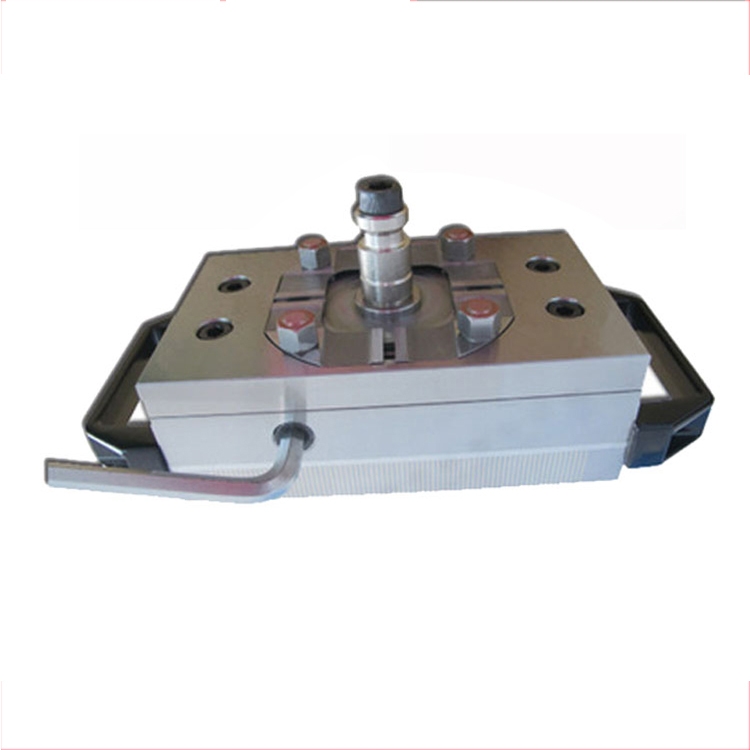

RHV3 Magnetic Pallet
Specification: 170x95x60 mm;
Material: Japan Chromium Steel 420
Process Treatment: Vaccum Heat Trealment
& Pro-Longed Coolling Surface nano-penetration
Treatment
Hardness: 48-52HRC;
This is a square pneumatic disk chuck compatible with EROWA/3R systems, designedspecifically for precision machining applications. It is a core tooling for therapid positioning of electrodes, molds, and precision parts.
MainMaterial: 420 stainless steel, hardness 48~52HRC,wear-resistant and corrosion-resistant, suitable for long-term high-precisionmachining.
Core Structure:
Top:G-type positioning plate + center pull stud interface, compatible with EROWAstandard electrode/workpiece trays.
Side:Manual locking wrench + two side handling handles for easy quick clamping andtransfer between equipment.
Bottom:Strong magnetic disk surface, can be attached to the machine tool table forrapid zero-point positioning.
Specifications:Approximately 170×95×60mm, suitable for various CNC machining centers, EDM machines, and CMM coordinate measuring machines.
Core Advantages
1.High-Precision Positioning
Repeatability≤0.002mm, ensuring dimensional consistency of workpieces when transferredbetween different machines.
Disk surface flatness ≤0.005mm, preventing workpiece deformation during clamping andguaranteeing machining accuracy.
2.Rapid Clamping and Efficient Transfer
Nocomplex adjustments are required; workpiece fixing is achieved simply bytightening with a wrench, reducing clamping time to within 1 minute.
Dualhandle design facilitates manual/automatic fixture handling, enabling"offline pre-adjustment + on-machine quick change".
Compatible with EROWA standard interfaces, allowing combination with extension rods andmulti-station trays to maximize machine tool utilization.
3.Multi-Scenario Adaptability
ApplicableEquipment: CNC machining centers, EDM machines, CMM coordinate measuringmachines, grinding machines, etc.
Applicable Objects: Precision electrodes, mold inserts, medical device parts, automotiveprecision components, etc.
SpecialAdvantage: Strong magnetic adsorption + mechanical locking dual fixation,suitable for high-speed cutting and deep cavity machining.
4.Durability and Easy Maintenance
The fully enclosed structure effectively blocks cutting fluid and chips, reducingthe failure rate.
The disk surface is not easily worn, with a lifespan of 3-5 years under normal useand low maintenance costs.
5.Core Application Scenarios
Mold Manufacturing: Electrode pre-adjustment and multi-process machining of moldinserts, reducing repetitive calibration time.
PrecisionElectronics/Medical: High-precision machining and inspection of micro-parts,meeting micron-level accuracy requirements.
Automotive Parts: Cross-equipment machining of complex structural parts, ensuringconsistency in mass production.
Automated Production Lines: As a quick-change unit, enabling unmanned production andflexible manufacturing.
Standard izationand Compatibility: Fully compatible with EROWA/3R systems, directly replacing imported products, reducing customer switching costs.
