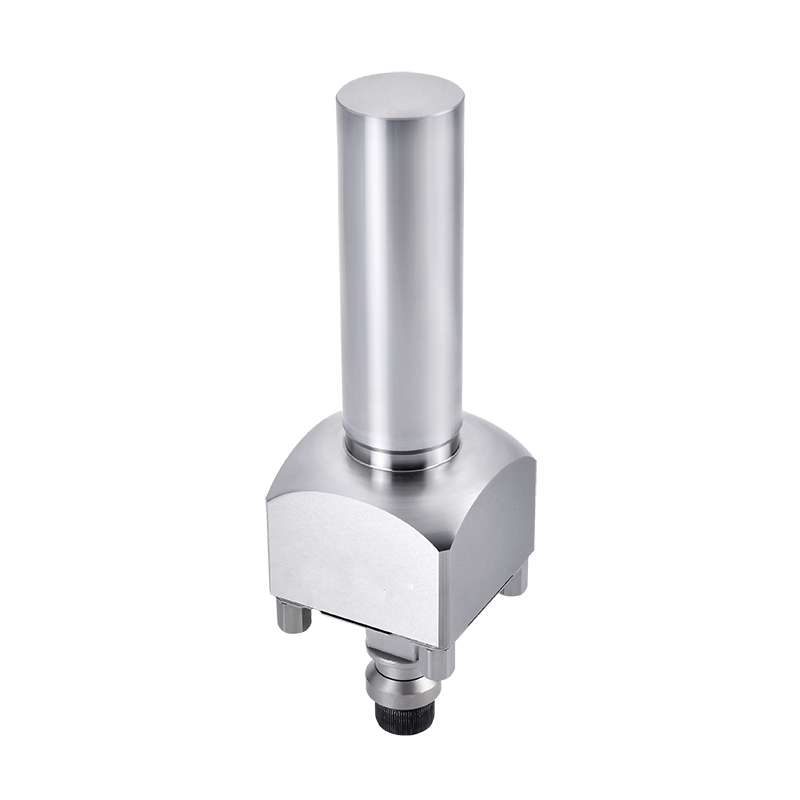

RHN7 D30 Cylindrical Gauging Pin
Specification: D30x146mm;
Material: 420 Stainless Steel
Hardness: 48-52HRC;
Concentricity Tolerance: ± 0.005mm
The D30 cylindrical reference stylus, compatible with the EROWA/3R system, isspecifically designed for reference calibration and accuracy testing ofhigh-precision machine tools, CMMs, EDMs, and other equipment. It is a coretooling component ensuring consistency in precision machining and measurement.
Product Core Parameters and Structure
1.Key Specifications
Model:RHN7 D30 Cylindrical Gauging Pin
Reference Diameter: D30mm (Standard EROWA/3R Reference Interface)
Material:420 Stainless Steel, cryogenically treated and precision ground
Hardness:HRC 48~52
Core Accuracy: ± 0.005mm
Bottom Interface: Standard EROWA D72 zero-point positioning interface, directlycompatible with machine tool/measuring machine worktables
2.Core Structure
Top Reference Post: φ30mm high-precision cylindrical surface, mirror polished,serving as the reference surface for measurement and calibration.
MiddleTransition Seat: High-strength alloy structure, ensuring coaxiality between thereference post and the bottom interface.
Bottom Positioning Interface: Standard EROWA D72 positioning groove + pull pinstructure, fully compatible with the system, enabling rapid positioning andreuse.
Core Advantages
1.Standardized interface for efficient cross-device calibration:Bottom-compatible with EROWA D72 zero-point positioning interface, allowingquick switching between CNC, EDM, WEDM, CMM, and other equipment.
Achieves"one-time clamping, multi-device calibration," significantly improvingequipment precision management efficiency and avoiding repeated clampingerrors.
2.High rigidity and durability for long-term stability and reliability:Bearing steel/hard alloy material, high hardness, wear resistance, andcorrosion resistance, with a lifespan of over 10 years under normal use. Deepcryogenic treatment eliminates internal stress, ensuring the reference columnremains unchanged and accurate over long-term use.
4.Convenient operation, adaptable to all scenarios: One-click positioning andinstallation, no manual alignment required, operation time ≤10 seconds. Thecylindrical reference surface is compatible with various probes (trigger type /scanning type) to meet different measurement needs.
