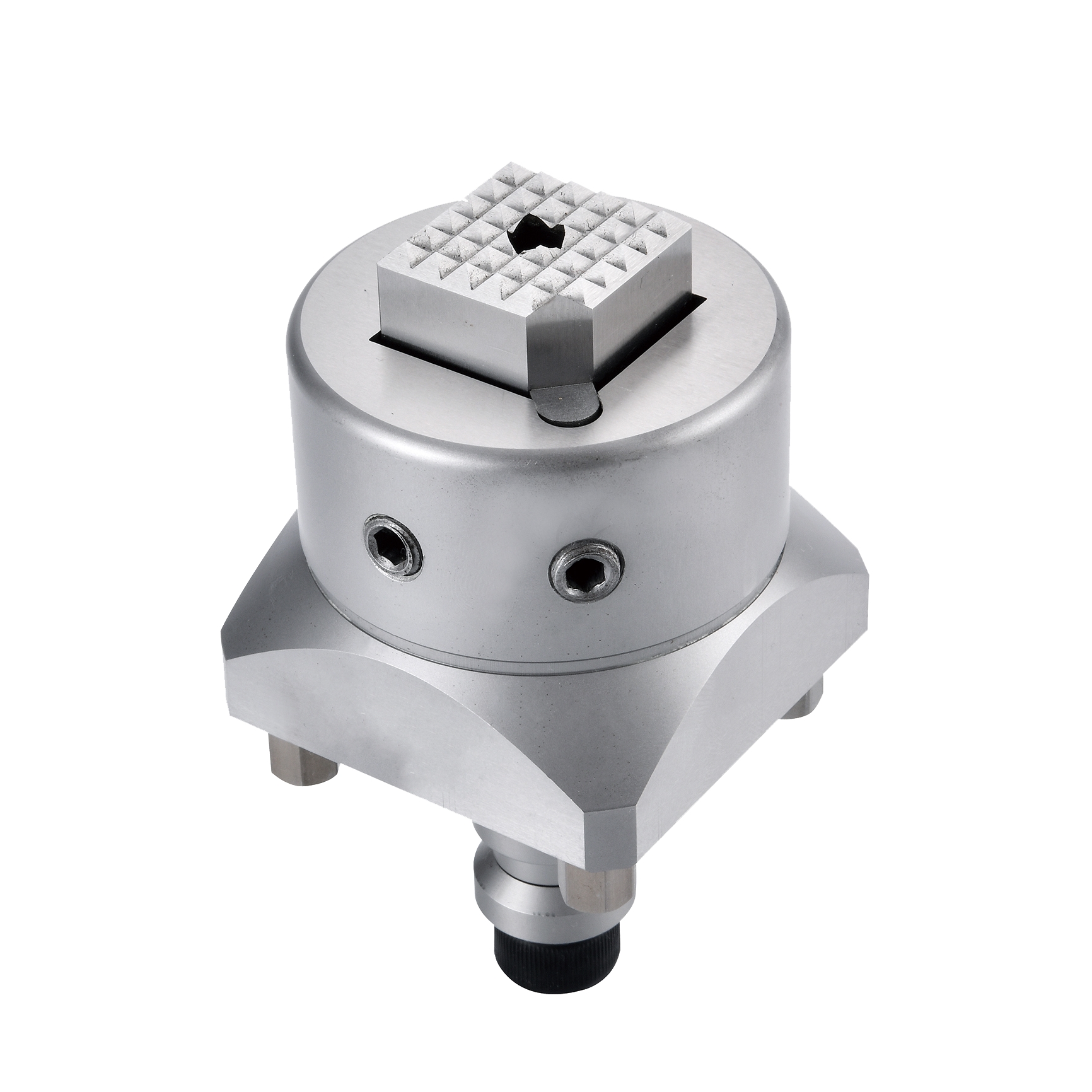

RHM1 25mm Squarer Electrode EDM Holder
Specification: 57x57x60mm;
Material: 420 Stainless Steel
Hardness: 48-52HRC;
Process Treatment: Vaccum Heat Trealment
& Pro-Longed Coolling Surface nano-penetration
Treatment.
RHM2 25mm Squarer Teeth Block For RHM1
Specification: 25x25x40 mm;
Material: Japan Chromium Steel
Hardness: 48-52HRC;
Process Treatment: Vaccum Heat Trealment
& Pro-Longed Coolling Surface nano-penetration
Treatment.
A 25mm square electrode quick-change chuck compatible with EROWA/3R systems, 100%compatible with EROWA/3R ITS 25 systems. It can directly replace importedelectrode chucks of the same type, reducing production line modification costs.Specifically designed for EDM (Electrical Discharge Machining) machines, CNCmachining centers, and other equipment, it is a core tooling for achievingefficient electrode clamping and high-precision machining.
Model:RHM1 25mm Square Electrode EDM Holder
ClampingRange: Adapts to 25mm square electrodes/workpieces, compatible with EROWA ITS25 standard interface
Bottom Interface: Standard EROWA D72 zero-point positioning interface, can directlyconnect to machine tool worktables or pallets, seamlessly connects with CNC,EDM, WEDM, CMM, and other equipment
Main Material: 420 Stainless Steel, quenched and tempered, hardness HRC 48~52
Core Accuracy: Repeatability ≤0.002mm, centering accuracy... ≤0.005mm Lockingmethod: Manual locking with side screws, strong self-locking, and secureclamping. Compatible with EDM (Electrical Discharge Machining) machines, CNCmachining centers, CMM (Coordinate Measuring Machines), and other equipment,meeting the needs of mold manufacturing, precision parts processing, and other scenarios.
