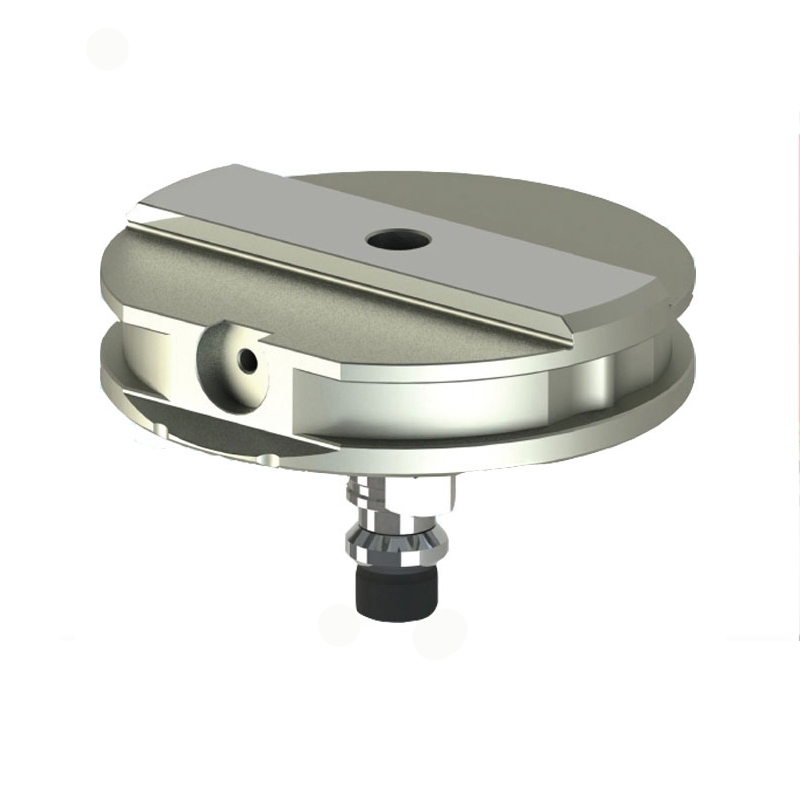

RHU5 D115 ITS Reference Pallet

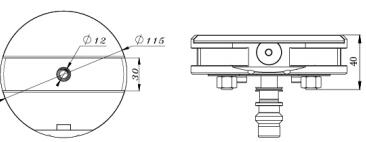

Specification: D115x40mm;
Material: 420 Stainless Steel
Concentricity Tolerance: ± 0.002mm
Hardness: 48-52HRC;
Process Treatment: Vaccum Heat Trealment
& Pro-Longed Coolling Surface nano-penetration
Treatment.
This is a single-slot circular zero-pointquick-change positioning tray compatible with EROWA/3R systems. It isspecifically designed for the rapid clamping and cross-equipment transfer ofprecision workpieces and electrodes, and is a core tooling for high-precisionscenarios such as five-axis machining, EDM, and CMM inspection.
Product Appearance and Structure
Main Body: Circular high-strength alloystructural steel, with a single-slot T-shaped/dovetail groove structure on thesurface and a standard zero-point positioning interface at the bottom.
Core Structure:
Top: Single-slot positioning surface +center positioning hole for quick installation of electrode holders, smallworkpiece fixtures, or jigs, ensuring precise positioning without offset.
Side: Locking/unlocking operation holes(manual/pneumatic optional), working with bottom pull studs for quick lockingand releasing.
Bottom: Standard EROWA/3R positioninginterface, allowing for quick docking with zero-point positioners and machinetool tables, with a repeatability accuracy ≤0.002mm.
Specifications: Common diameter φ148mm,height approximately 45mm, single-slot width adapted to EROWA standard trays.
Core Advantages
1. High-Precision Positioning and Stability
Repeatability ≤0.002mm, ensuring completedimensional consistency of workpieces during transfer between CNC, EDM, and CMMequipment.
Single-slot structure + center positioninghole dual positioning avoids clamping offset, suitable for high-precision five-axissimultaneous machining and precision inspection.
High overall rigidity and excellentresistance to deformation, suitable for high-speed cutting and heavy-dutymachining scenarios.
2. Rapid Clamping and Efficient Transfer
One-button locking/unlocking(manual/pneumatic optional), clamping time reduced to within 10 seconds,eliminating the need for manual alignment.
Single-slot design compatible with standardelectrode trays, enabling "offline pre-adjustment + on-machine quickchange," significantly improving machine tool uptime.
Circular design adapts to the rotary tableof five-axis machine tools, eliminating interference dead angles and meetingmulti-faceted machining needs.
3. Durable and Easy to Maintain
The main body is made of high-strengthalloy structural steel, hardened and tempered to a hardness of HRC58-62, makingit wear-resistant and corrosion-resistant. Under normal use, its lifespan canreach 5-10 years.
The fully enclosed structure effectivelyblocks cutting fluid and chips, reducing the failure rate. Routine maintenanceonly requires cleaning and rust prevention.
4. Versatile Applications
Applicable Equipment: 5-axis machiningcenters, CNC milling machines, EDM machines, CMM coordinate measuring machines,grinding machines, etc.
Applicable Objects: Precision moldelectrodes, small precision parts, medical device components, aerospaceprecision parts, etc.
