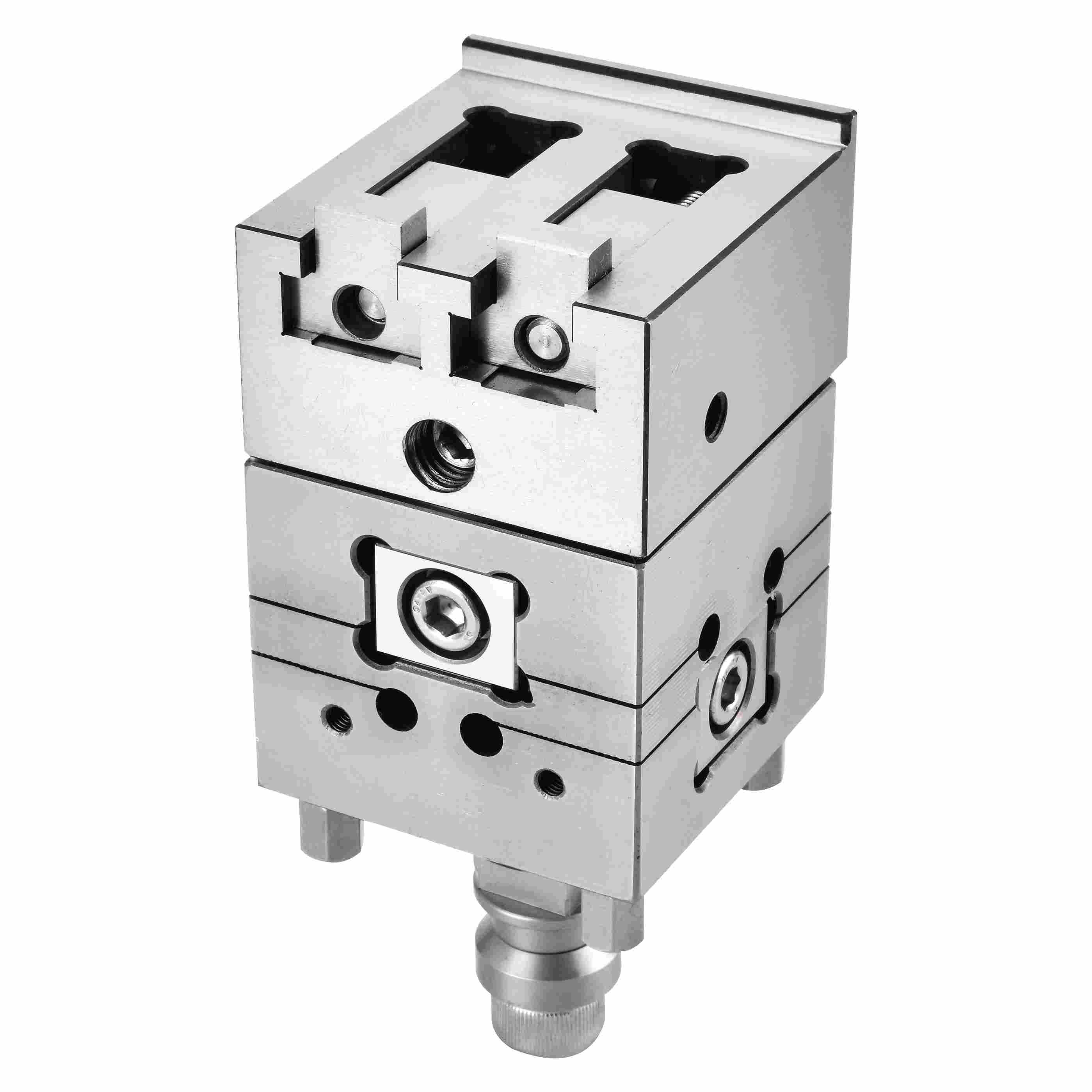

RHT2 3 Axies High Precision Control Wire Cut Jig

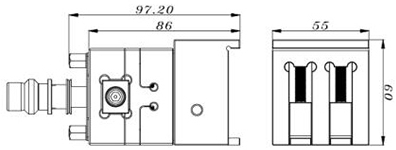

Specification: 60x55x97.2mm;
Material: 420 Stainless Steel
Hardness: 50-53HRC;
Concentricity Tolerance: ± 0.005mm
Process Treatment: Vaccum Heat Trealment
& Pro-Longed Coolling Surface nano-penetration
Treatment
Features: 3-Axis Multi-Directional Fine-Tuning,
Holder Small Workpiece.
This is the RHT2 three-axis high-precision wire EDM fixture, specifically designedfor slow wire EDM (WEDM). Compatible with EROWA/3R systems, its core advantagesare "three-axis fine-tuning, extreme precision, and efficientclamping," making it a core tooling for high-precision wire EDM machining of precision molds, electronic components, and medical devices.
Product Core Parameters and Structure
1.Key Specifications
Model:RHT2 3-Axis High Precision Control Wire Cut Jig
Adjustment Range: X/Y/Z three-axis precision adjustable, adjustment stroke ±3mm(customizable)
Clamping Range: Adaptable to work pieces/electrodes of 0~30mm size, compatible withEROWA ITS 25/50 standard interface
Main Material: 420 stainless steel, quenched and tempered, hardness HRC 50~53
Core Accuracy: Repeat positioning accuracy ≤0.002mm, adjustment resolution ≤0.001mm
2.Core Structure
Top Clamping End: Dual-position slot design, can clamp 2 work pieces/electrodessimultaneously, compatible with EROWA standard quick-change interface,self-centering locking, secure clamping without offset.
Middle Adjustment Module: X/Y/Z three-axis precision lead screw adjustment, achievingmicron-level three-dimensional position correction, precise alignment withoutdisassembly.
Bottom Interface: Standard EROWA D72 zero-point positioning interface, directly inter faceablewith machine tool tables or zero-point positioners, enabling cross-devicezero-point transfer.
LockingMechanism: Multi-directional locking screws, one-button locking afteradjustment, ensuring vibration-free and displacement-free machining.
Core Advantages:
1.Three-Axis Micron-Level Adjustability, Ultimate Precision
IndependentX/Y/Z axis adjustment with a resolution ≤0.001mm, allowing online correction ofwork piece/electrode 3D position deviations, completely eliminating clampingerrors.
Fine-tuningcan be completed without disassembling the work piece, making it particularlysuitable for high-precision wire EDM machining of complex cavities, irregularholes, and multi-faceted features, significantly reducing scrap rates.
2.Efficient Clamping, Compatible with Standardized Systems
Dual-stationdesign allows simultaneous clamping of 2 work pieces, increasing machiningefficiency by over 50%.
The bottom is compatible with the EROWA D72 zero-point positioning interface,enabling "offline pre-adjustment + on-machine quick change," reducingclamping time to within 30 seconds. It can seamlessly interface with CNC, EDM,CMM, and other equipment.
3.High rigidity and stability ensure machining quality. The high-strength moldsteel body is precision ground, resulting in high rigidity and resistance todeformation, ensuring vibration-free and displacement-free operation duringhigh-current wire EDM.
The modular structure design balances light weight design with rigidity, reducingmachine tool load while facilitating coolant flow and chip removal.
4.Durable and easy to maintain, suitable for harsh environments. The fullyenclosed adjustment mechanism is waterproof, chip-proof, andcorrosion-resistant, adapting to the humid and chip-prone environments of wire EDM machines.
The precision-ground surface is not prone to slag adhesion, requiring only cleaningand rust prevention maintenance daily. Its normal service life can reach 8-10years.
