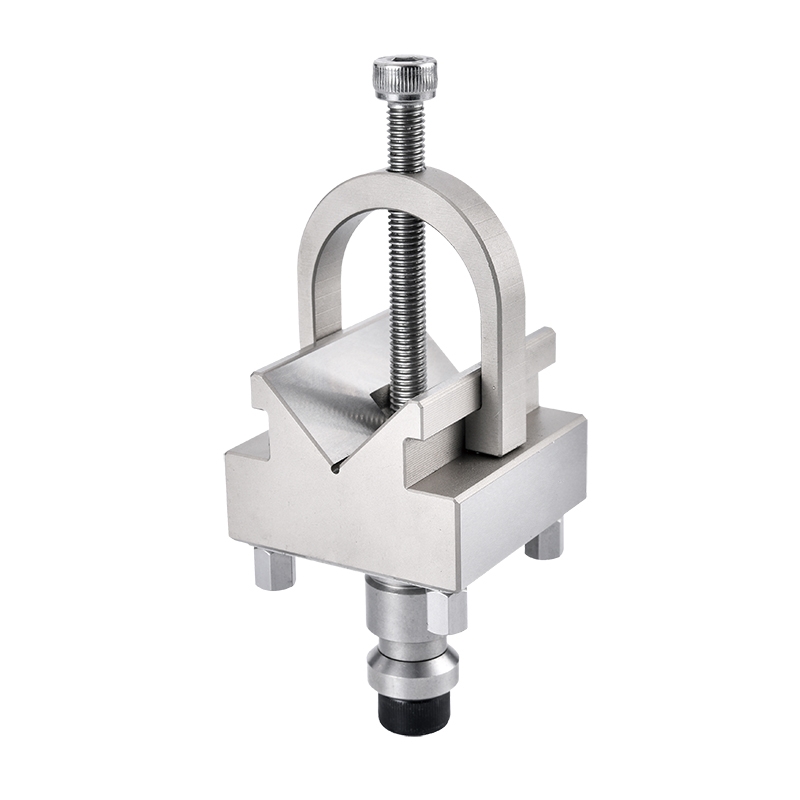

RHT1 V Shape Wire Cur EDM Holder
Specification: 55x55x86.5mm;
Material: 420 Stainless Steel
Hardness: 50-53HRC;
Concentricity Tolerance: ± 0.005mm
Process Treatment: Vaccum Heat Trealment
& Pro-Longed Coolling Surface nano-penetration
Treatment
This is the RHT1 V-type wire EDM fixture, specifically designed for slow wire electrical discharge machining (WEDM). Compatible with the EROWA/3R system, itscore advantages are "V-type self-centering, quick clamping, and highrigidity," making it an ideal tooling for high-precision wire EDM machining of cylindrical workpieces such as bars, tubes, and shafts.
Product Core Parameters and Structure
1.Key Specifications
Model:RHT1 V Shape Wire Cut EDM Holder
Clamping Range: Suitable for cylindrical work pieces/round bars/tubes with diameters ofφ2~φ30mm
BottomInterface: Standard EROWA D72 zero-point positioning interface, can be directlyconnected to machine tool worktables or zero-point positioners
Main Body Material: High-strength stainless steel/420 mold steel, quenched andtempered, hardness HRC 50~53
Core Accuracy: Repeat positioning accuracy ≤0.002mm, V-groove alignment accuracy≤0.005mm
2.Core Structure
Top Clamping End: V-groove + screw locking structure. The V-groove enablesautomatic alignment of cylindrical workpieces, and the top screw quicklyclamps, ensuring a firm and non-offset clamping.
Middle Main Body: Integrated rigid structure, resistant to deformation and vibration,ensuring stable position during processing.
Bottom Interface: Standard EROWA D72 positioning groove + pull stud interface, fully compatible with EROWA/3R systems, enabling quick zero-point changeover acrossequipment.
Locking Mechanism: Top knurled screw; manual tightening completes clamping, convenientoperation, and strong self-locking.
Core Advantages:
1.V-shaped self-centering for precise clamping of cylindrical work pieces:Precision V-groove design automatically centers cylindrical workpieces with acentering accuracy ≤0.005mm, avoiding manual alignment errors.
Suitablefor various cylindrical workpieces such as bars, tubes, and shafts, with aclamping range of φ2~φ30mm, covering most wire EDM cylindrical workpiecerequirements.
2.Quick clamping, compatible with standardized systems: Top screw locking;clamping/unclamping takes only 10 seconds, convenient operation, significantlyimproving processing efficiency.
The bottom is compatible with the EROWA D72 zero-point positioning interface,enabling "offline pre-adjustment + on-machine quick change," allowingseamless integration with CNC, EDM, CMM, and other equipment to improve machinetool uptime.
3.High rigidity and stability ensure machining quality. The high-strength stainless steel is precision ground, providing high rigidityand resistance to deformation, ensuring vibration-free and displacement-freeoperation during high-current wire EDM.
Thefully enclosed structure is water proof, chip-proof, and corrosion-resistant,adapting to the harsh environment of wire EDM machines with high humidity anddebris.
4.Durable, easy to maintain, and cost-effective. The precision-ground surface isnot prone to slag adhesion, requiring only daily cleaning and rust preventionmaintenance. Normal service life can reach 8-10 years.
100%compatible with EROWA/3R systems, it can directly replace imported similarproducts at a price only 1/3 to 1/2 that of imported products, significantlyreducing customer procurement costs.
