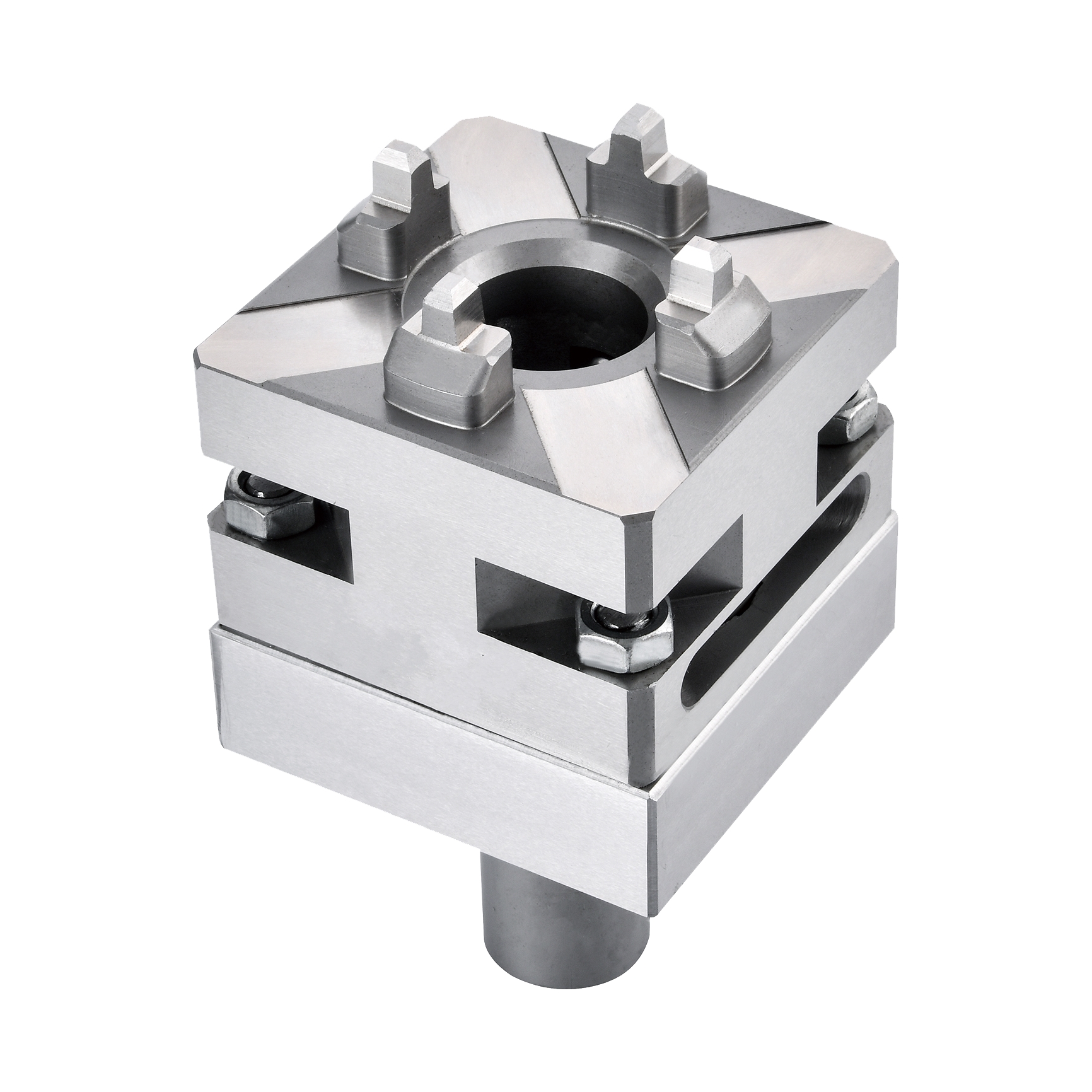

RHL6 Small EMD Chuck(Handle Lock) With Connector
Specification: 56x56x91 mm;
Material: Japan Chromium Steel
Hardness: 57-60HRC;
Clamping: 4000N
Process Treatment: Vaccum Heat Trealment & Pro-Longed Coolling
Surface nano-penetration treatment .
This is a small, handle-operated, quick-change chuck designed specifically for EDM(Electronic Discharge Machining). Featuring a straight shank connector, itscore advantages are "compact structure, quick clamping, and precisepositioning," making it an ideal tooling for the efficient machining ofprecision mold electrodes and small parts.
Model:RHL6 Small EDM Chuck (Handle Lock) With Connector
Clamping Interface: Compatible with EROWA ITS 50 standard interface, adaptable to D50electrode tray
Locking Method: Handle-type quick locking, convenient operation, strong self-locking
Connector:Straight shank design at the bottom, can be directly inserted into machine toolspindle/clamp hole, flexible installation
Main Material: Japan Chromium Steel, quenched and tempered, hardness HRC 57~60
Core Accuracy: Repeat positioning accuracy ≤0.002mm, centering accuracy ≤0.005mm
Top Clamping End: ITS 50 standard interface, 4 sets of positioning jaws preciselymate with the tray, clamping without offset
Middle Locking Mechanism: Handle-type quick locking structure, clamping/releasing canbe completed by turning the handle, efficient operation
Bottom Connector: Straight shank design, can be directly inserted into machine toolspindle or clamp hole, adaptable to various machine tool layouts
Positioning Structure: Built-in precision positioning pin, compatible with EROWA ITS50-pallet zero-gap fit ensures precise positioning.
100% compatible with EROWA/3R ITS 50 system, can directly replace similar products,reducing production line modification costs.
