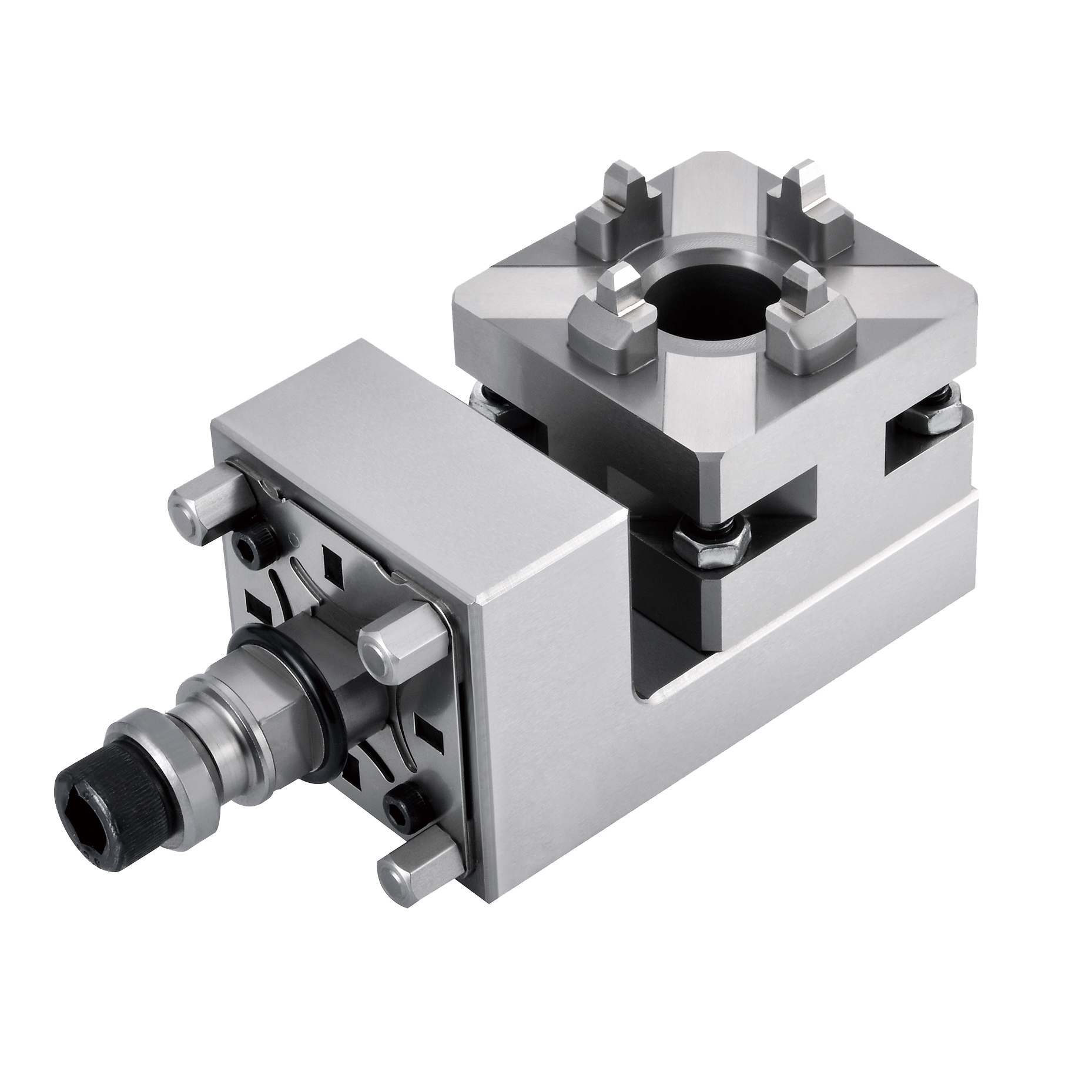

RHL5 Vertical EMD Manual Chuck(Handle Lock)
Specification: 56x69.5x108 mm;
Material: Japan Chromium Steel
Hardness: 57-60HRC;
Clamping: 4000N
Process Treatment: Vaccum Heat Trealment & Pro-Longed Coolling
Surface nano-penetration treatment .
This is a vertical handle locking quick-change chuck designed specifically for EDM(Electrical Discharge Machining). It is 100% compatible with EROWA/3R ITS 50& D72 systems and can directly replace similar products, reducing production line modification costs.
Model:RHL5 Vertical EDM Manual Chuck (Handle Lock)
Clamping Interface: Compatible with EROWA ITS 50 standard interface, adaptable to D50electrode tray
Locking Method: Handle-type quick-locking, easy to operate, strong self-locking
Bottom Interface: Standard EROWA D72 zero-point positioning interface, can be directlyconnected to machine tool worktable or tray
Main Material: Japan Chromium Steel, quenched and tempered, hardness HRC 57~60
Core Accuracy: Repeat positioning accuracy ≤0.002mm, centering accuracy ≤0.005mm,meeting the stringent processing requirements of high-precision molds, medicalparts, etc.
Compatible with EROWA ITS 50 standard interface, enabling "offline pre-adjustment +on-machine quick change", completely eliminating manual alignment errors.
Top Clamping End: ITS 50 standard interface, 4 sets of positioning jaws preciselyconnect to the tray, clamping without offset
Middle Locking Mechanism: Handle-type quick-locking structure, clamping is completedby simply turning the handle. Release for efficient operation
Bottompo sitioning interface: Standard EROWA D72 positioning slot + pull pinstructure, fully compatible with the system, enabling rapid positioning andcross-device transfer
Verticallayout: 90° vertical structure design, adaptable to vertical EDM machine tools,saving lateral space and facilitating deep cavity machining.
