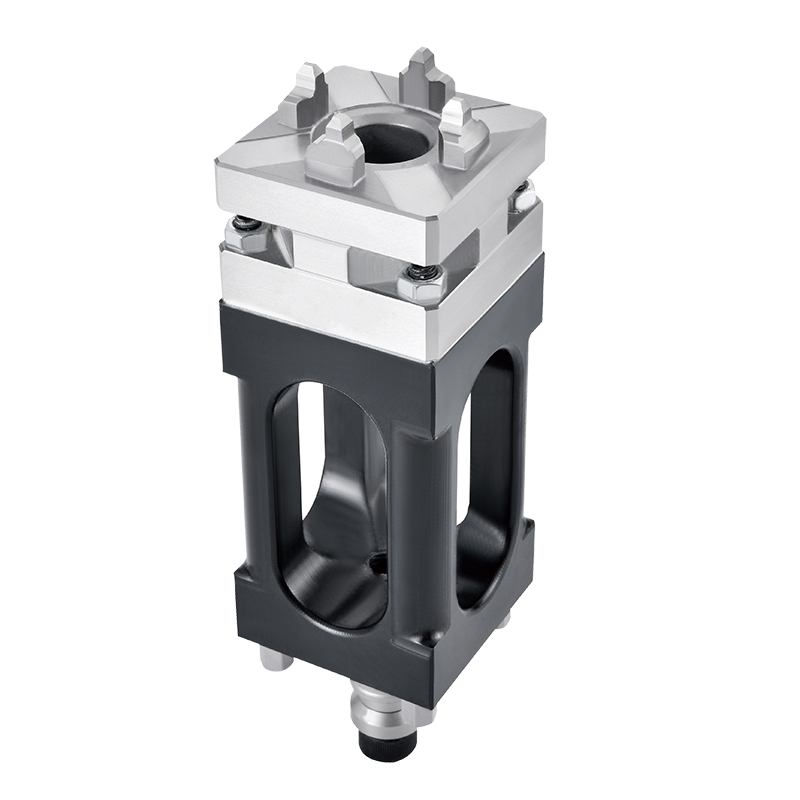

RHL3 Small Long Manual Chuck(Handle Lock)
Specification: 167.2x56x56 mm;
Material: Japan Chromium Steel
Hardness: 57-60HRC;
Clamping: 4000N
Process Treatment: Vaccum Heat Trealment & Pro-Longed Coolling
Surface nano-penetration treatment .
Thisi s a small, extended-handle locking quick-change chuck compatible with theEROWA/3R system. It is specifically designed for complex working conditionssuch as deep cavities and high sidewalls, and is a core tooling forhigh-precision machining of precision mold electrodes and slender parts.
1.Key Specifications
Model:RHL3 Small Long Manual Chuck (Handle Lock)
ClampingInterface: Compatible with EROWA ITS 50 standard interface, adaptable to D50electrode tray
Locking Method: Handle-type quick-locking, easy to operate, strong self-locking
Bottom Interface: Standard EROWA D72 zero-point positioning interface, standard EROWAD72 positioning groove + pull pin structure, fully compatible with the system,enabling quick positioning and cross-equipment transfer
Main Material: Japan Chromium Steel, hardness HRC 57~60
Core Accuracy: Repeat positioning accuracy ≤0.002mm, centering accuracy ≤0.005mm
Structural Features: Extended hollow design, achieving lightweight while ensuringrigidity, suitable for deep cavity machining
2.Core Structure
Top Clamping End: ITS 50 standard interface, 4 sets of positioning jaws preciselyengage with the tray, clamping without offset
Middle Locking Mechanism: Handle-type quick-locking structure, clamping is completedby simply turning the handle. Release for efficient operation. Extended base:The hollow, lightweight design improves machining accessibility while ensuringover all rigidity and vibration resistance.
