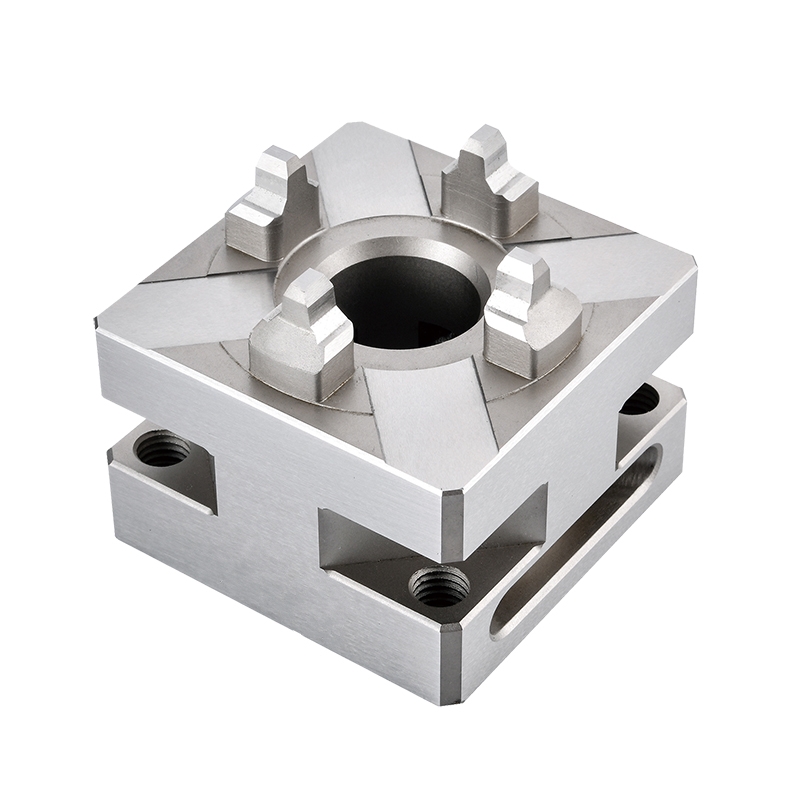

RHL1 Small Manual Chuck(Handle Lock)
Specification: 56x56x36 mm;
Material: Japan Chromium Steel
Hardness: 57-60HRC;
Clamping: 4000N
Process Treatment: Vaccum Heat Trealment & Pro-Longed Coolling
Surface nano-penetration treatment .
This is a small, handle-locking, quick-change chuck compatible with the EROWA/3Rsystem. Its core advantages are "compact structure, quick clamping, andprecise positioning," making it an ideal tooling for the efficientmachining of precision mold electrodes and small parts. It is 100% compatiblewith the EROWA/3R ITS 50 system and can directly replace imported products ofthe same type, reducing production line modification costs.
1.Key Specifications
Model:RHL1 Small Manual Chuck (Handle Lock)
Clamping Interface: Compatible with EROWA ITS 50 standard interface, adaptable to D50electrode trays
Locking Method: Handle-type quick-locking, convenient operation, strong self-locking
Installation Method: Side oblong hole + threaded hole, can be directly fixed to the machinetool table or fixture
Main Material: Japan Chromium Steel, quenched and tempered, hardness HRC 57~60, highrigidity, deformation resistance, vibration resistance, suitable for long-term EDM electrical discharge machining.
Core Accuracy: Repeatability ≤0.002mm, Centering Accuracy ≤0.005mm
2.Core Structure
Top Clamping End: ITS 50 standard interface, 4 sets of positioning jaws precisely engage with the pallet, clamping without offset.
Middle Locking Mechanism: Handle-type quick-locking structure; clamping/releasing iscompleted by simply turning the handle, ensuring efficient operation.
Base:Compact square structure with pre-drilled oblong mounting holes and threadedholes on the side, allowing for flexible installation and adaptability tovarious machine tool layouts.
PositioningStructure: Built-in precision positioning pins ensure zero-gap fit with the EROWA ITS 50 pallet, guaranteeing accurate positioning.
