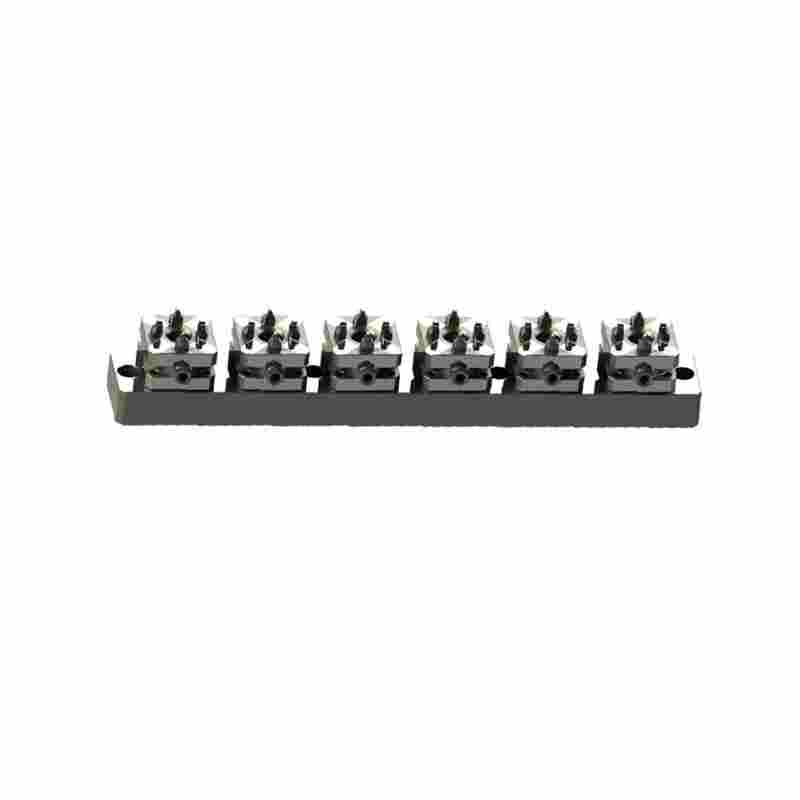

RHS3 6 IN 1 D50 Manual Chuck(Screw Lock)
Specification: 505x65x69 mm;
Material: Japan Chromium Steel
Hardness: 57-60HRC;
Clamping: 6000N
Process Treatment: Vaccum Heat Trealment & Pro-Longed Coolling
Surface nano-penetration treatment .
This is a 6-station D50 manual screw chuck designed specifically for the EROWA/3Rsystem. Its core advantages are "multi-station high efficiency, precisepositioning, and stable durability." It is an ideal tooling for batch processing of precision electrodes and small parts, and is widely compatiblewith CNC, EDM, WEDM, and other equipment.
Product Core Parameters and Structure
1.Key Specifications
Model:RHS3 6 IN 1 D50 Manual Chuck (Screw Lock)
Numberof Stations: 6 independent stations, capable of simultaneously clamping 6workpieces/electrodes
Clamping Interface: Compatible with EROWA ITS 50 standard interface, adaptable to D50electrode trays
Locking Method: Manual locking with side screws, strong self-locking, secure clamping
Main Material: Japan Chromium Steel, quenched and tempered, hardness HRC 57~60
Core Accuracy: Repeat positioning accuracy ≤0.002mm, inter-station position accuracy≤0.005mm
2.Core Structure
Top Station Module: 6 independent ITS 50 Interface stations, each capable ofindependent clamping and locking without interference.
Central locking mechanism: Side screw locking design, manual tightening completesclamping, convenient operation, excellent self-locking performance.
Base:Long, high-strength base, can be directly fixed to the machine tool table, orused with a zero-point positioner for cross-equipment transfer.
Positioning structure: Each station has a built-in precision positioning pin, precisely aligning with the EROWA ITS 50 tray to ensure clamping without offset.
Coread vantages:
1.6-station efficient clamping, doubling capacity
Six work pieces/electrodes can be processed simultaneously in one clamping,significantly improving machine tool uptime and increasing capacity by over 500%. Compact layout between stations saves machine tool table space, suitablefor batch precision machining scenarios.
2.High-precision positioning, ensuring machining consistency
Repeat positioning accuracy ≤0.002mm, station-to-station position accuracy ≤0.005mm,ensuring complete consistency of work piece dimensions in batch processing.
Compatible with EROWA ITS 50 standard interface, enabling... "Offline pre-adjustment+ on-machine quick change" eliminates manual alignment errors.
3.Screw tightening for stable and reliable operation. Side screws are manually tightened, offering strong self-locking properties, preventing loosening anddis placement during high-speed cutting and EDM processing. Made ofhigh-strength mold steel, it is resistant to deformation and vibration, suitablefor long-term continuous processing.
4.Durable and easy to maintain, adaptable to all scenarios. Fully enclosedstructure, waterproof, chip-proof, and corrosion-resistant, adaptable to harshenvironments of various machine tools. Precision-ground surface, less prone toslag adhesion, requiring only daily cleaning and rust prevention maintenance;normal service life can reach 8-10 years.
