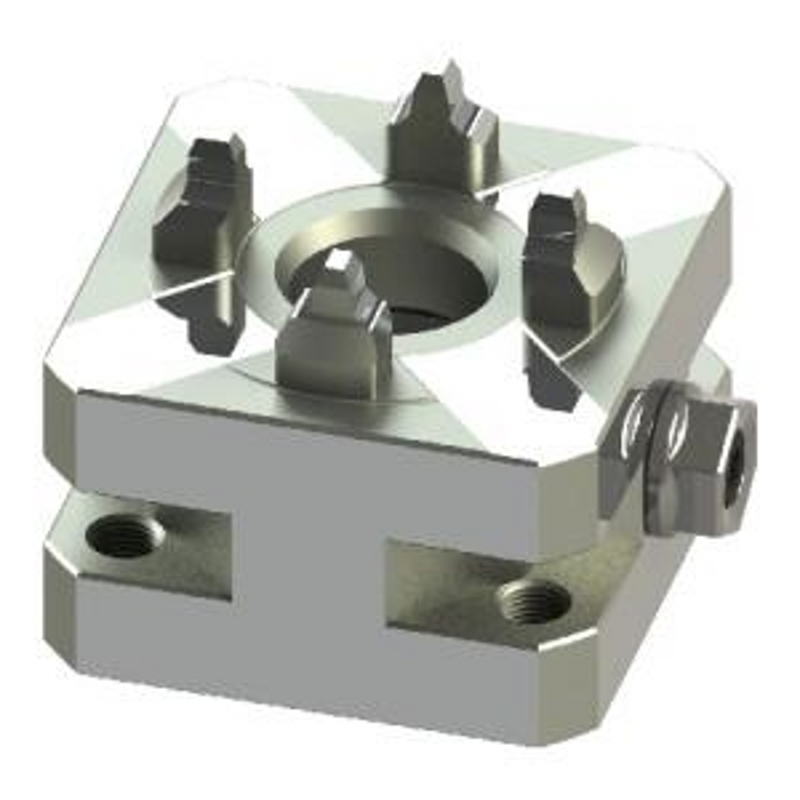

RHS1 D50 Manual Chuck(Screw Lock)

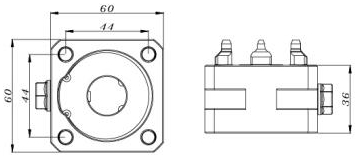

Specification: 60x60x36 mm;
Material: Japan Chromium Steel
Hardness: 57-60HRC;
Clamping: 4500N
Process Treatment: Vaccum Heat Trealment & Pro-Longed Coolling
Surface nano-penetration treatment .
This is a single-station D50 manual screw lock chuck designed specifically for EROWA/3R systems. Its core advantages are "precise positioning, quickclamping, and stable durability," making it an ideal tooling forhigh-precision machining of precision electrodes and small parts. It is widelycompatible with CNC, EDM, WEDM, and other equipment.
Product Core Parameters and Structure
1.Key Specifications
Model:RHS1 D50 Manual Chuck (Screw Lock)
Numberof Stations: Single station, focusing on high-precisionsingle-piece/small-batch machining
Clamping Interface: Compatible with EROWA ITS 50 standard interface, adaptable to D50electrode trays
Locking Method: Side screw manual locking, strong self-locking, secure clamping
Main Material: Japan Chromium Steel, quenched and tempered, hardness HRC 57~60
Core Accuracy: Repeat positioning accuracy ≤0.002mm, flatness ≤0.005mm
2.Core Structure
Top Clamping End: ITS 50 standard interface, 4 Signaling claws precisely alignwith the pallet, ensuring zero clamping offset.
Center locking mechanism Side screw locking design; manual tightening completesclamping, convenient operation, and excellent self-locking performance.
Base:Pre-drilled mounting holes allow direct mounting to the machine tool table orcross-device transfer with a zero-point positioner.
Positioning structure: Built-in precision positioning pins ensure zero-gap fit with the EROWA ITS 50 pallet, guaranteeing precise positioning.
Core Advantages:
1.Extreme precision, ensuring machining stability: Repeatability ≤0.002mm,flatness ≤0.005mm, meeting the stringent machining requirements ofhigh-precision molds, medical parts, etc.
Compatiblewith EROWA ITS 50 standard interface, enabling "offline pre-adjustment +on-machine quick change," completely eliminating manual alignment errors.
2.Quick clamping, improving production efficiency: Side screw locking;clamping/unclamping takes only 10 seconds, convenient operation, significantlyreducing machine tool downtime.
Compact single-station structure, suitable for precision single parts/ 3. Stable andreliable screw tightening: Side screws are manually tightened, providing strongself-locking properties, ensuring no loosening or displacement duringhigh-speed cutting and EDM processing. Made of high-strength mold steel, it isresistant to deformation and vibration, suitable for long-term continuousprocessing.
4.Durable and easy to maintain, adaptable to all scenarios: Fully enclosed structure, waterproof, chip-proof, and corrosion-resistant, adaptable to harshenvironments of various machine tools. Precision-ground surface, not prone toslag adhesion, requiring only cleaning and rust prevention maintenance daily;normal service life can reach 8-10 years.
