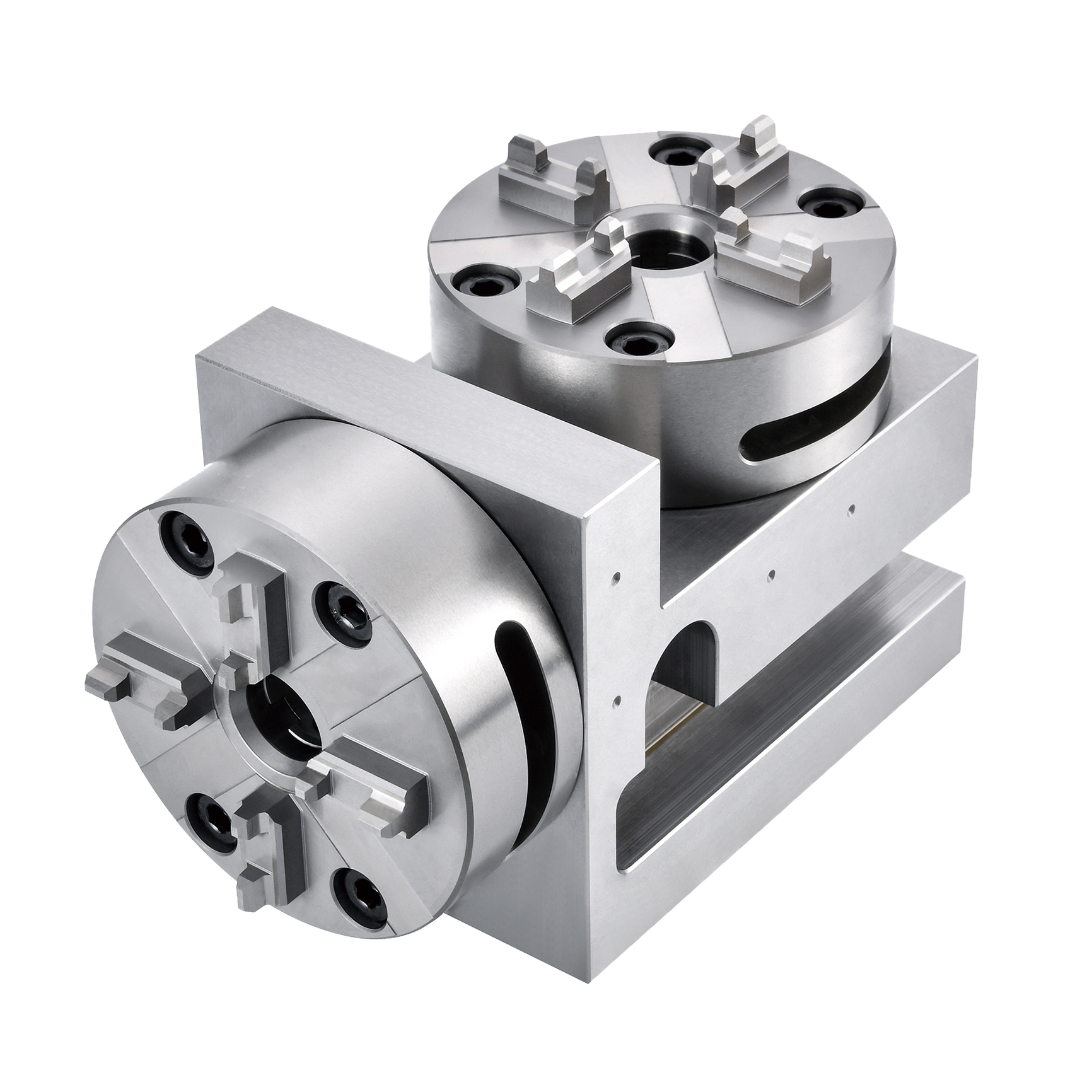

RHK15 D100 Horizontal & Vertical Manual Chuck

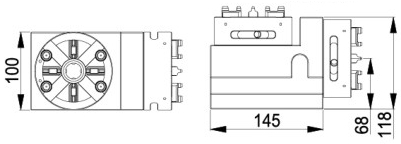

Specification: 145x100x118 mm;
Material: Japan Chromium Steel
Hardness: 57-60HRC;
Clamping: 6000N
Process Treatment: Vaccum Heat Trealment & Pro-Longed Coolling
Surface nano-penetration treatment .
This is the D100 vertical/horizontal dual-purpose manual chuck, compatible with theEROWA/3R system. Its core advantages are "dual-station layout, versatilityfor both vertical and horizontal operation, and precise positioning." Itis an ideal tooling for the efficient machining of large precision parts andmold electrodes, and is widely compatible with CNC, EDM, and WEDM equipment.
1.Key Specifications
Model:RHK15 D100 Horizontal & Vertical Manual Chuck
Numberof Stations: 2 independent stations, capable of clamping 2workpieces/electrodes simultaneously
Clamping Interface: Compatible with EROWA ITS 100 standard interface, adaptable to D100electrode trays
Locking Method: Manual screw locking, strong self-locking, secure clamping
Installation Method: Dual-purpose vertical/horizontal structure, can be in stalled horizontally/vertically on the machine tool table
Main Material: Japan Chromium Steel, quenched and tempered, hardness HRC 57~60
Core Accuracy: Repeat positioning accuracy ≤0.002mm, inter-station position accuracy≤0.005mm
2.Core Structure
Top Dual-Station Clamping End: 2 independent ITS 100 interface stations, eachstation has 4 sets of positioning jaws for precise docking with the tray,clamping without offset
MiddleDual-Purpose Base: 90° right-angle structure design, can be installedhorizontally/vertically Vertical mounting, adaptable to different machine toollayouts
Locking mechanism: Side screw locking design, manual tightening completes clamping,convenient operation, excellent self-locking performance
Positioning structure: Built-in precision positioning pins fit perfectly with the EROWA ITS100 pallet, ensuring accurate positioning
