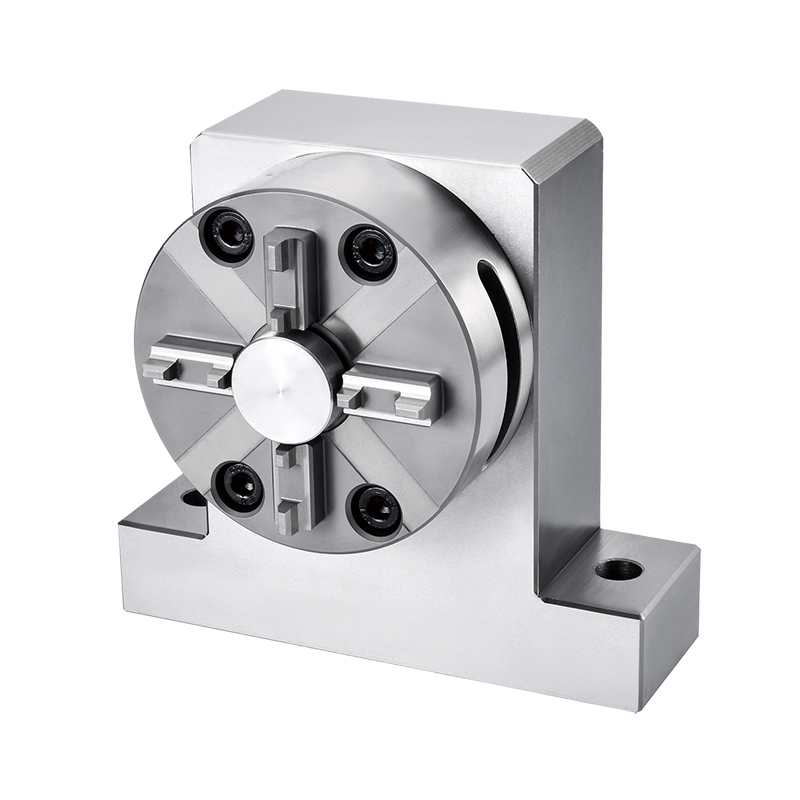

RHK14 D100 Vertical Manual Chuck

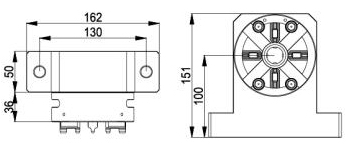

Specification: 162x86x151 mm;
Material: Japan Chromium Steel
Hardness: 57-60HRC;
Clamping: 6000N
Process Treatment: Vaccum Heat Trealment & Pro-Longed Coolling
Surface nano-penetration treatment .
This is a D100 vertical manual chuck compatible with the EROWA/3R system, 100% compatible with the EROWA/3R ITS 100 system. It can directly replace similar products, reducing production line modification costs. Its core advantages are"vertical layout, large-diameter clamping, and precise positioning,"making it ideal for large precision mold electrodes and heavy parts.
1.Key Specifications
Model:RHK14 D100 Vertical Manual Chuck
Clamping Interface: Compatible with EROWA ITS 100 standard interface, adaptable to D100electrode support plate
Locking Method: Manual screw locking, strong self-locking, secure clamping
Installation Method: Vertical 90° right-angle structure, can be directly fixed to themachine tool worktable
Main Material: Japan Chromium Steel, quenched and tempered, hardness HRC 57~60
Core Accuracy: Repeat positioning accuracy ≤0.002mm, flatness ≤0.005mm, meeting the stringent processing requirements of high-precision molds, medical parts, etc.
2.Core Structure
Top Clamping End: ITS 100 standard interface, 4 sets of positioning jaws precisely engage with the pallet, ensuring zero clamping offset.
Middle Vertical Base: 90° right-angle structure design, adaptable to vertical machinetools, saving lateral space, especially suitable for machining deep-cavity andhigh-side-wall molds.
LockingMechanism: Side screw locking design, manual tightening completes clamping,convenient operation, excellent self-locking performance.
PositioningStructure: Built-in precision positioning pins, zero-gap fit with the EROWA ITS100 pallet, ensuring accurate positioning.
