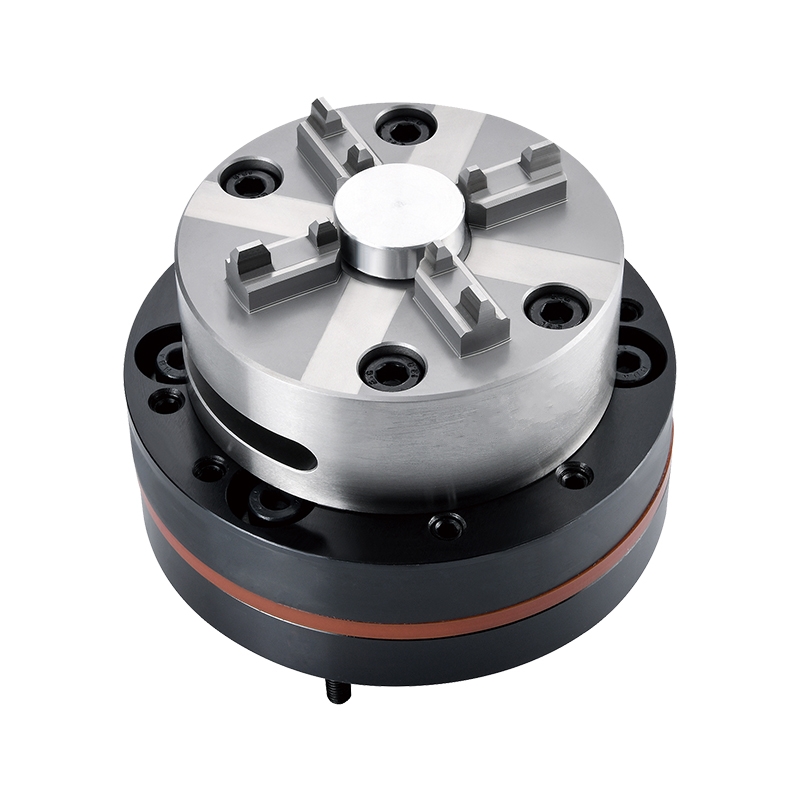

RHK13 D100 Manual Chuck With EDM Base

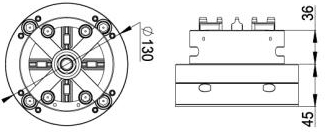

Specification: 130x81 mm;
Material: Japan Chromium Steel
Hardness: 57-60HRC;
Clamping: 6000N
Process Treatment: Vaccum Heat Trealment & Pro-Longed Coolling
Surface nano-penetration treatment .
This is a D100 manual chuck (with EDM base) compatible with the EROWA/3R system. Itscore advantages are "large-diameter clamping, waterproof and chip-proof,and precise positioning," making it an ideal tooling for the efficientmachining of large precision mold electrodes and heavy parts on EDM/CNCequipment.
1.Key Specifications
Model:RHK13 D100 Manual Chuck With EDM Base
Clamping Interface: Compatible with EROWA ITS 100 standard interface, adaptable to D100electrode tray
Locking Method: Manual screw locking, strong self-locking, secure clamping
Base Features: Equipped with a waterproof and chip-proof EDM-specific base, suitablefor the humid environment of EDM machines
Main Material: Japan Chromium Steel, hardness HRC 57~60
Core Accuracy: Repeatability ≤0.002mm, flatness ≤0.005mm
Protection Rating: IP65 waterproof and chip-proof, suitable for EDM working fluidenvironments
2.Core Structure
Top Clamping End: ITS 100 standard interface, 4 sets of positioning jaws preciselyalign with the tray, clamping without offset
Middle Locking Mechanism: Side screw locking design, manual tightening completes clamping, convenient operation, excellent self-locking
Bottom EDM Dedicated base: Waterproof and chip-proof structure with a sealing ring andbuilt-in mounting holes, allowing direct fixation to the machine tool table andisolating working fluid and impurities.
Positioning structure: Built-in precision positioning pins ensure zero-gap fit with theEROWA ITS 100 tray, guaranteeing accurate positioning.
