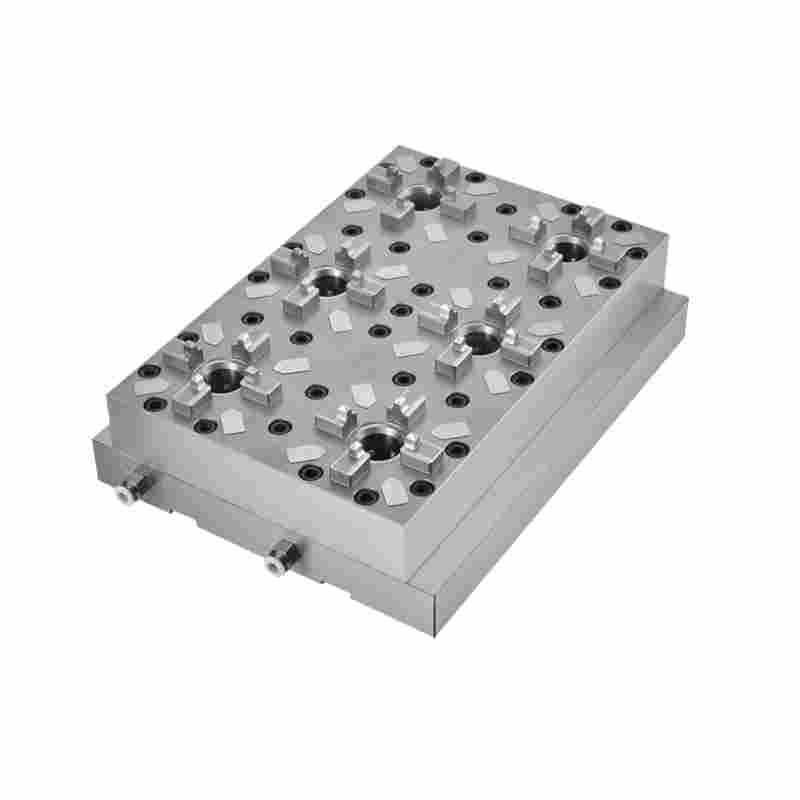

RHF3 6 IN 1 Small Pneumatic Chuck

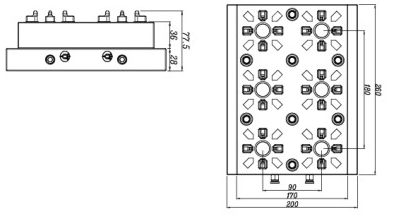

Specification: 260x200x77.5 mm;
Material: Japan Chromium Steel
Hardness: 57-60HRC;
Pressure: Air Pressure 6 bar/kg
Clamping: 6000N
Process Treatment: Vaccum Heat Trealment & Pro-Longed Coolling
Surface nano-penetration treatment .
Accessories: Japan SMC,NSK Parts, PFPE Grease,Aluminum plug,
Airtac Swith, HASCO Spring,
This is a 6-station compact pneumatic chuck compatible with the EROWA/3R system. Itscore advantages include "multi-station high efficiency, one-button pneumatic locking, and precise positioning." It is an ideal tooling forbatch processing of precision electrodes and small parts, and is widelycompatible with CNC, EDM, WEDM, and other automated equipment.
1.Key Specifications
Model:RHF3 6 IN 1 Small Pneumatic Chuck
Numberof Stations: 6 independent stations, capable of simultaneously clamping 6workpieces/electrodes
Clamping Interface: Compatible with EROWA ITS 50 standard interface, adaptable to D50electrode trays
Drive Method: Pneumatic locking/unlocking, rapid automation response
Main Material: Japan Chromium Steel, quenched and tempered, hardness HRC 57~60
Core Accuracy: Repeat positioning accuracy ≤0.002mm, inter-station position accuracy≤0.005mm
InstallationMethod: Square base plate with pre-drilled mounting holes, can be directlyfixed to the machine tool table
Waterproof and chip-proof, suitable for harsh CNC/EDM environments
2.Core Structure Analysis
Top Multi-Station Clamping End: 6 independent ITS 50 interface stations, eachstation has 4... The positioning jaws precisely align with the pallet, ensuringzero clamping offset.
Central pneumatic mechanism: Built-in high-rigidity cylinder, one-buttonlocking/unlocking via side air supply interface, easy operation, no manualforce required.
Basepanel: Long, high-strength base plate with multiple sets of universal mountingholes and positioning holes, allowing direct installation on standard machinetool worktables.
Positioning structure: Built-in precision positioning pins ensure zero-gap fit with theEROWA ITS 50 pallet, guaranteeing precise positioning.
