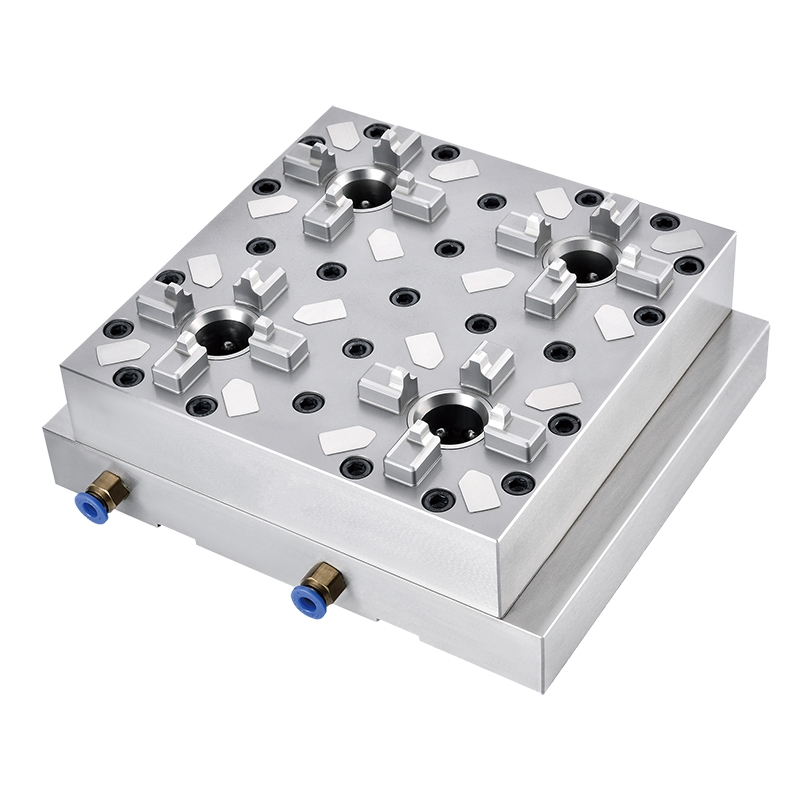

RHF2 4 IN 1 Small Pneumatic Chuck
Specification: 200x170x77.5 mm;
Material: Japan Chromium Steel
Hardness: 57-60HRC;
Pressure: Air Pressure 6 bar/kg
Clamping: 6000N
Process Treatment: Vaccum Heat Trealment & Pro-Longed Coolling
Surface nano-penetration treatment .
Accessories: Japan SMC,NSK Parts, PFPE Grease,Aluminum plug,
Airtac Swith, HASCO Spring,
This is a 4-station compact pneumatic chuck compatible with the EROWA/3R system. Itscore advantages include "multi-station high efficiency, one-button pneumatic locking, and precise positioning." It is an ideal tooling for batchprocessing of precision electrodes and small parts, and is widely compatiblewith CNC, EDM, WEDM, and other automated equipment.
1.Key Specifications
Model:RHF2 4 IN 1 Small Pneumatic Chuck
Numberof Stations: 4 independent stations, capable of simultaneously clamping 4 workpieces/electrodes
Clamping Interface: Compatible with EROWA ITS 50 standard interface, adaptable to D50 electrode trays
Drive Method: Pneumatic locking/unlocking, rapid automated response
Main Material: Japan Chromium Steel, quenched and tempered, hardness HRC 57~60
Core Accuracy: Repeat positioning accuracy ≤0.002mm, inter-station position accuracy≤0.005mm
Installation Method: Square base plate with pre-drilled mounting holes, directly fixed tothe machine tool table
2.Core Structure Analysis
Top Multi-Station Clamping End: 4 independent ITS 50 interface stations, eachstation has 4 sets of positioning claws for precise docking with the tray,clamping without offset
Middle Pneumatic Mechanism: Built-in high-rigidity cylinder, one-button locking/unlocking achieved through side air source interface Unlocking andoperation are easy, requiring no manual force.
BasePanel: Square high-strength base plate with multiple sets of universal mountingholes and positioning holes, allowing direct installation on standard machinetool worktables.
Positioning Structure: Built-in precision positioning pins ensure zero-gap fit with theEROWA ITS 50 tray, guaranteeing accurate positioning.
