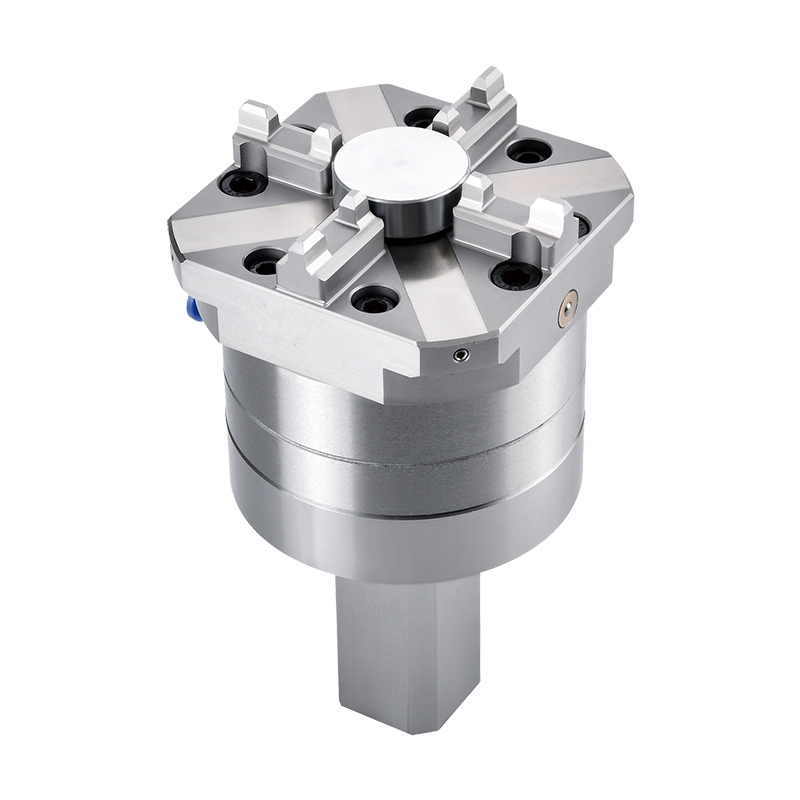

RHE9 80mm EDM Square Pneumatic Chuck

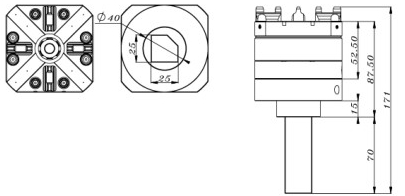

Specification: 80x80x171 mm;
Material: Japan Chromium Steel
Hardness: 57-60HRC;
Pressure: Air Pressure 6 bar/kg
Clamping: 6000N
Process Treatment: Vaccum Heat Trealment & Pro-Longed Coolling
Surface nano-penetration treatment .
Accessories: Japan SMC,NSK Parts, PFPE Grease,Aluminum plug,
Airtac Swith, HASCO Spring,
This is an 80mm square pneumatic chuck designed specifically for EDM (ElectronicDischarge Machining). Compatible with the EROWA/3R system, its core advantagesinclude a compact square structure, one-button pneumatic locking, andwaterproof and chip-proof features. It is an ideal tooling for the efficientmachining of precision mold electrodes and small parts.
1.Key Specifications
Model:RHE9 80mm EDM Square Pneumatic Chuck
Clamping Interface: Compatible with EROWA ITS 50 standard interface, adaptable to D50electrode tray
Drive Method: Pneumatic locking/unlocking, rapid automated response
Dimensions:80mm square compact structure, space-saving
Bottom Connection: Hexagonal straight shank design, can be directly inserted intomachine tool spindle/clamp hole
Main Material: Japan Chromium Steel, quenched and tempered, hardness HRC 57~60
Core Accuracy: Repeat positioning accuracy ≤0.002mm, centering accuracy ≤0.005mm
2.Core Structure
Top Clamping End: ITS 50 standard interface, 4 sets of positioning jaws precisely mate with the tray, clamping without offset
Middle Pneumatic Mechanism: Built-in high-rigidity cylinder, one-buttonlocking/unlocking achieved through side air source interface Unlocking and easyoperation
Bottomconnector: Hexagonal straight shank design allows direct insertion into machinetool spindle or fixture holes for flexible installation.
Positioning structure: Built-in precision positioning pins ensure zero-gap fit with the EROWA ITS 50 tray, guaranteeing accurate positioning.
