RHC8 51×81 Flatten Surface Brass Holder
| Specification: 51×81×34.2mm; |
|
|
| Material: Brass Original Material; |
|
|
| Hardness: 100-110HB; |
|
|
| Process Treatment: 90 Angle Shape Machinning, |
| Flat Surface Machining. |
|
|

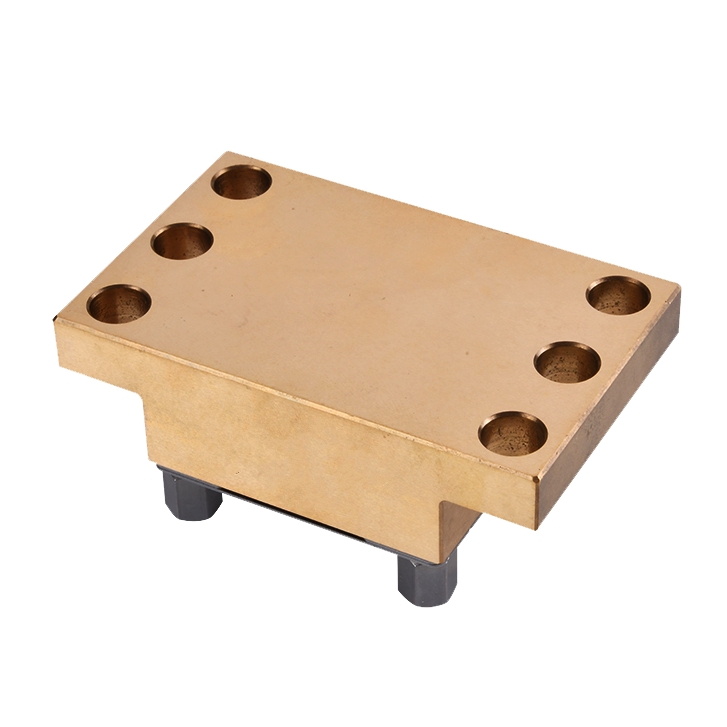

This is a 51×81 planar brass electrode holder compatible with the EROWA/3R system,specifically designed for EDM (Electrical Discharge Machining). Its coreadvantages are high conductivity, planar reference, and rapid positioning,making it an ideal tooling for efficient EDM machining of precision moldelectrodes.
1.Key Specifications
Model:RHC8 51×81 Flatten Surface Brass Holder
Reference Surface Size: 51mm × 81mm high-precision flat surface
Material:High-purity brass (CuZn37), conductivity ≥ 45 MS/m
Bottom Interface: Standard EROWA D72 zero-point positioning interface, can directlyconnect to machine tool worktable or pallet
Core Accuracy: Flatness ≤0.005mm, repeatability ≤0.002mm
Surface Treatment: Precision grinding + anti-oxidation treatment, ensuring conductivityand rust resistance
2.Core Structure
Top Plane Reference Surface: 51×81mm high-precision flat surface, serving as thereference surface for electrode installation and EDM, ensuring the parallelismbetween the electrode and the workpiece.
Middle Brass Body: High-purity brass material, providing excellent conductivity andheat dissipation, improving discharge efficiency and surface quality.
Bottom Positioning Interface: Standard EROWA D72 positioning groove + The pull-pinstructure ensures full system compatibility, enabling rapid positioning andcross-equipment transfer.
1.High-conductivity brass material enhances discharge efficiency. High-puritybrass material with a conductivity ≥ 45 MS/m ensures stable and efficient EDMdischarge, improving processing speed and surface finish. Excellent heatdissipation prevents electrode wear and accuracy degradation caused bylocalized overheating during discharge.
2.High-precision planar reference ensures processing consistency. Flatness ≤0.005mm and repeatability ≤ 0.002mm ensure parallelism between the electrodeand workpiece after installation, improving mold accuracy. Compatible with the EROWA D72 standard interface, enabling "offline pre-adjustment +on-machine quick change," completely eliminating manual alignment errors.
3.Rapid positioning and efficient cross-equipment transfer. The bottom EROWA D72 zero-point positioning interface allows for clamping/unclamping in just 10 seconds, simplifying operation and significantly reducing machine downtime. Itallows for rapid switching between CNC, EDM, and CMM equipment, enabling multi-process electrode machining and improving production efficiency.
