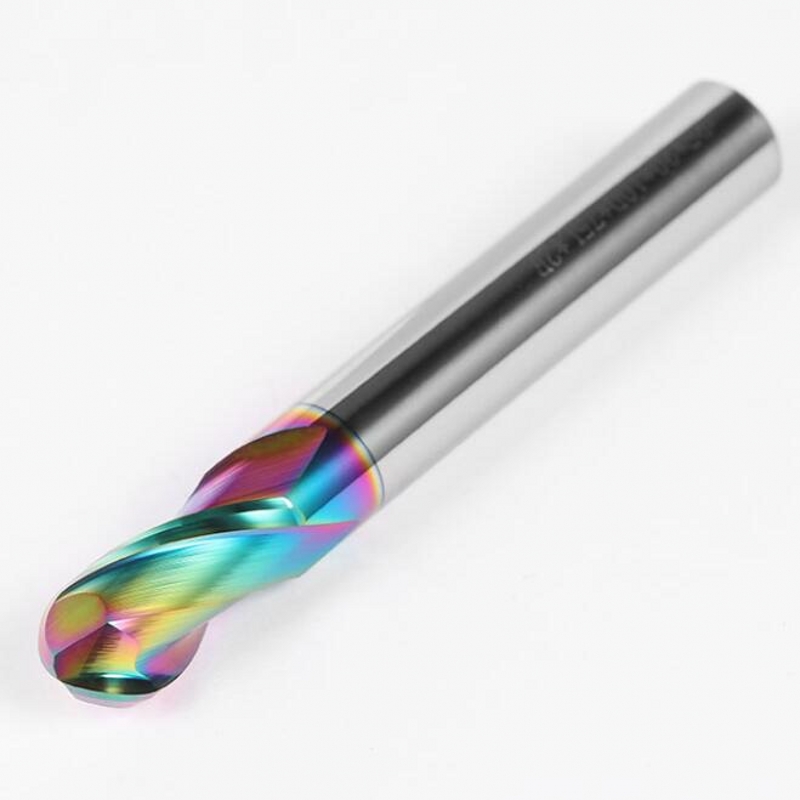

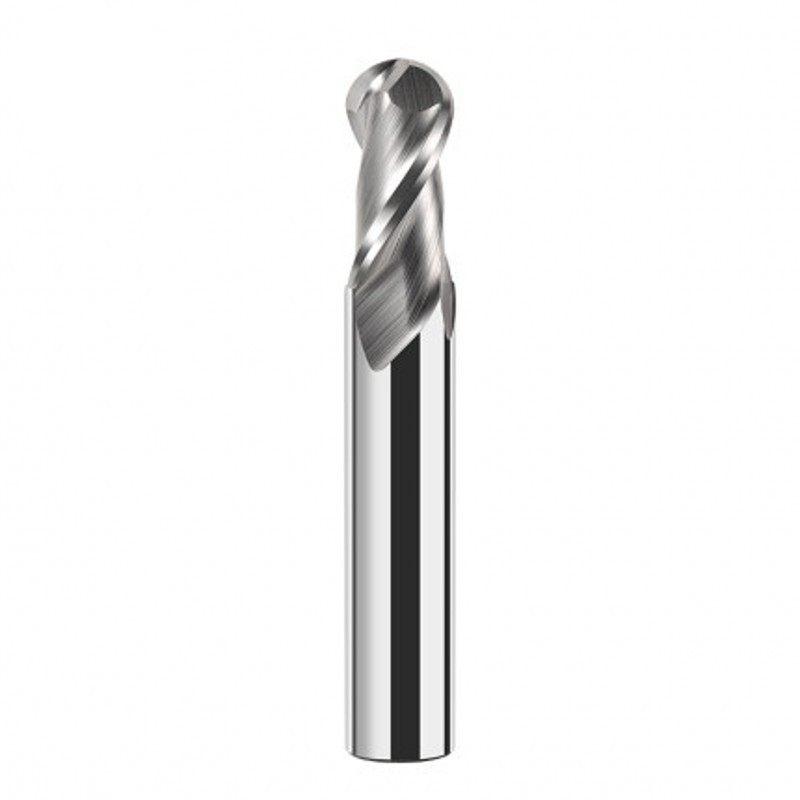

Professionelle Aluminium-Hartmetall-Kugelkopffräser
Beschichtung: DLC ODER keine Beschichtung
Korngröße: 0,4 µm
HRC: 55
Spiralwinkel: 35
Nuten: 2
Anwendung: HRC < 55 Aluminium, Kupfer und andere Nichteisenmetalle…….
Nichtstandardmäßige Produktion und OEM sind jederzeit willkommen.
| Type | d | D | L1 | L | Flutes |
| HRC55-AL2-R0.5*50 | 1 | 4 | 2 | 50 | 2 |
| HRC55-AL2-R0.75*50 | 1.5 | 4 | 3 | 50 | 2 |
| HRC55-AL2-R1*50 | 2 | 4 | 4 | 50 | 2 |
| HRC55-AL2-R1.25*50 | 2.5 | 4 | 5 | 50 | 2 |
| HRC55-AL2-R1.5*50*D3 | 3 | 3 | 6 | 50 | 2 |
| HRC55-AL2-R1.5*50 | 3 | 4 | 6 | 50 | 2 |
| HRC55-AL2-R1.75*50 | 3.5 | 4 | 7 | 50 | 2 |
| HRC55-AL2-R2*50 | 4 | 4 | 8 | 50 | 2 |
| HRC55-AL2-R2.5*50*D5 | 5 | 5 | 10 | 50 | 2 |
| HRC55-AL2-R2.5*50*D6 | 5 | 6 | 10 | 50 | 2 |
| HRC55-AL2-R3*50 | 6 | 6 | 12 | 50 | 2 |
| HRC55-AL2-R4*60 | 8 | 8 | 16 | 60 | 2 |
| HRC55-AL2-R5*75 | 10 | 10 | 20 | 75 | 2 |
| HRC55-AL2-R6*75 | 12 | 12 | 24 | 75 | 2 |
| HRC55-AL2-R7*100 | 14 | 14 | 28 | 100 | 2 |
| HRC55-AL2-R8*100 | 16 | 16 | 32 | 100 | 2 |
| HRC55-AL2-R9*100 | 18 | 18 | 36 | 100 | 2 |
| HRC55-AL2-R10*100 | 20 | 20 | 40 | 100 | 2 |
| HRC55-AL2-R2*75 | 4 | 4 | 8 | 75 | 2 |
| HRC55-AL2-R2*100 | 4 | 4 | 8 | 100 | 2 |
| HRC55-AL2-R3*75 | 6 | 6 | 12 | 75 | 2 |
| HRC55-AL2-R3*100 | 6 | 6 | 12 | 100 | 2 |
| HRC55-AL2-R3*150 | 6 | 6 | 12 | 150 | 2 |
| HRC55-AL2-R4*75 | 8 | 8 | 16 | 75 | 2 |
| HRC55-AL2-R4*100 | 8 | 8 | 16 | 100 | 2 |
| HRC55-AL2-R4*150 | 8 | 8 | 16 | 150 | 2 |
| HRC55-AL2-R5*100 | 10 | 10 | 20 | 100 | 2 |
| HRC55-AL2-R5*150 | 10 | 10 | 20 | 150 | 2 |
| HRC55-AL2-R6*100 | 12 | 12 | 24 | 100 | 2 |
| HRC55-AL2-R6*150 | 12 | 12 | 24 | 150 | 2 |
| HRC55-AL2-R7*150 | 14 | 14 | 28 | 150 | 2 |
| HRC55-AL2-R8*150 | 16 | 16 | 32 | 150 | 2 |
| HRC55-AL2-R10*150 | 20 | 20 | 40 | 150 | 2 |
